Products

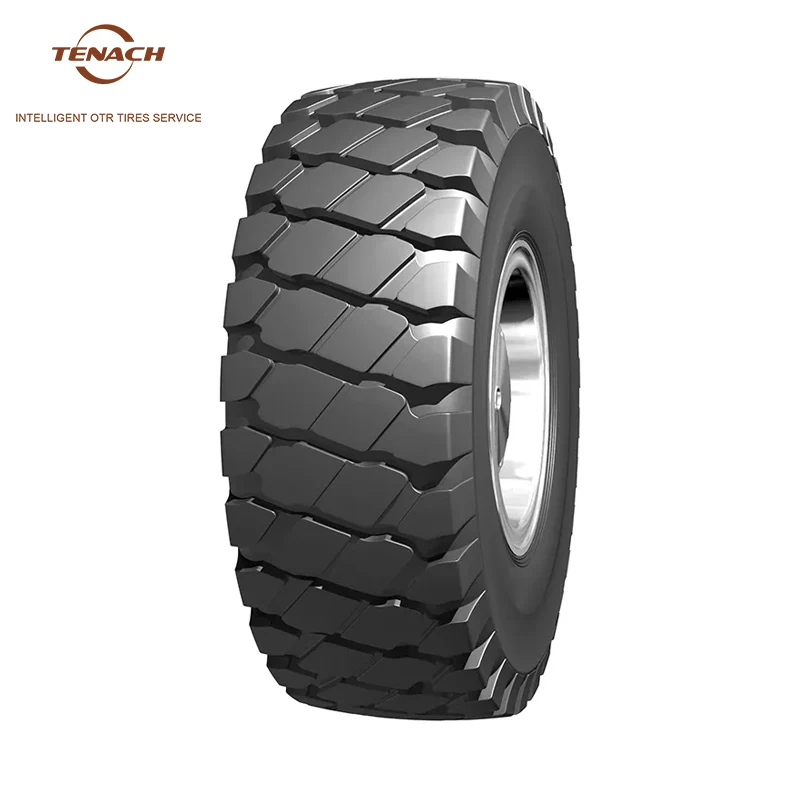

Wide Base Dump Truck Mud Tires
The quality of production is the lifeline of enterprise,our Wide Base Dump Truck Mud Tires also makes great development on technology and new production research.
1.Deep tread desianed for severe and rocky surfaces
2.Used for underground mining,open pits and quarries
3.Specially designed sidewall provides extended protection from cutting
4.Excellent combination of traction,stability and comfortable ride
Send Inquiry
PDF DownLoad
Product Description
One of the key features of our Wide Base Dump Truck Mud Tires is their wide base, which provides greater stability and weight distribution than traditional tires. This means your truck will be less likely to tip over or skid, even in challenging conditions.
The quality of production is the lifeline of enterprise,our OTR program also makes great development on technology and new production research. Wide base dump truck mud tires have been sold to over 80 countries and regions basing on its perfect quality and excellent after-sale service system.
Wide base dump truck mud tires are equipped with advanced manufacturing equipment from smelting, extrusion, cutting, molding and vulcanization. Various raw materials such as rubber, steel wire and carbon black are purchased only from top suppliers, which effectively guarantees the stable quality of the products.
Product Parameter (Specification)
| SIZE | STAR RATING | TYPE | TRA CODE | STANDARD RIM |
TREAD DEPTH (mm) |
LOAD INDEX |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | |
| 50KM/H | 10KM/H | |||||||||
| 17.5R25 | ★★ | TL | E-3/L-3 | 14.00/1.5 | 28 | 167B/182A2 | 445 | 1348 | 5450/525 | 8500/650 |
| 20.5R25 | ★★ | TL | E-3/L-3 | 17.00/2.0 | 30 | 177B/193A2 | 521 | 1493 | 7300/525 | 11500/650 |
| 23.5R25 | ★★ | TL | E-3/L-3 | 19.5/2.5 | 31.5 | 185B/201A2 | 597 | 1617 | 9250/450 | 14500/575 |
| 23.5R25 | ★★ | TL | E-3/L-3 A | 19.5/2.5 | 41 | 185B/201A2 | 597 | 1617 | 9250/525 | 14500/650 |
| 26.5R25 | ★★ | TL | E-3/L-3 | 22.00/3.0 | 36 | 193B/209A2 | 673 | 1750 | 11500/525 | 18500/650 |
| 29.5R25 | ★★ | TL | E-3/L-3 | 25.00/3.5 | 43 | 200B/216A2 | 749 | 1874 | 14000/525 | 22400/650 |
| 29.5R29 | ★★ | TL | E-3/L-3 | 25.00/3.5 | 43 | 2028/218A2 | 749 | 1975 | 15000/525 | 23600/650 |
| SIZE | STAR RATING | TYPE | TRA CODE | STANDARD RIM |
TREAD DEPTH (mm) |
LOAD INDEX |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | |
| 50KM/H | 10KM/H | |||||||||
| 26.5R25 | ★★ | TL | E-3/L-3 | 22.00/3.0 | 38.5 | 193B/209A2 | 673 | 1750 | 11500/525 | 18500/650 |
| 29.5R25 | ★★ | TL | E-3/L-3 | 25.00/3.5 | 43 | 200B/216A2 | 749 | 1874 | 14000/525 | 22400/650 |
| SIZE | STAR RATING | TYPE | TRA CODE | STANDARD RIM |
TREAD DEPTH (mm) |
LOAD INDEX |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | |
| 50KM/H | 10KM/H | |||||||||
| 12.00R24 | ★★★ | TT | E-4 | 8.5 | 31.5 | 164/162F | 315 | 1245 | 5000/900(single) | 4750/900(dual) |
| 18.00R33 | ★★ | TL | E-4 | 13.00/2.5 | 54 | 191B/209A2 | 500 | 1875 | 10900/700 | |
| 21.00R33 | ★★ | TT/TL | E-4 | 15.00/3.0 | 54 | 200B | 570 | 1955 | 14000/65 | |
| 24.00R35 | ★★ | TL | E-4 | 17.00/3.5 | 63 | 209B/227A2 | 655 | 2175 | 18500/700 | |
| 24.00R35 | ★★★ | TL | E-4 | 17.00/3.5 | 63 | 214B | 655 | 2175 | 21200/900 | |
| SIZE | STAR RATING | TYPE | TRA CODE | STANDARD RIM |
TREAD DEPTH (mm) |
LOAD INDEX |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | |
| 50KM/H | 10KM/H | |||||||||
| 18.00R33 | ★★ | TL | E-4 | 13.00/2.5 | 49 | 191B | 500 | 1875 | 109900/700 | |
| ★★★ | TL | E-4 | 13.00/2.5 | 49 | 196B | 500 | 1875 | 12500/900 | ||
| 21.00R35 | ★★ | TL | E-4 | 15.00/3.0 | 53 | 201B | 555 | 2040 | 14500/700 | |
| 24.00R35 | ★★ | TL | E-4 | 17.00/3.5 | 58 | 209B | 655 | 2175 | 18500/700 | |
| ★★★ | TL | E-4 | 17.00/3.5 | 58 | 214B | 655 | 2175 | 21200/900 | ||
| SIZE | STAR RATING | TYPE | TRA CODE | STANDARD RIM |
TREAD DEPTH (mm) |
LOAD INDEX |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | |
| 50KM/H | 10KM/H | |||||||||
| 14.00R24 | ★★★ | TT/TL | E-4 | 10.00W | 36 | 170B | 375 | 1418 | 6050/800 |
|
| 14.00R25 | ★★★ | TT | E-4 | 10.00/2.0 | 36 | 170B | 375 | 1418 | 6050/800 |
|
| 16.00R25 | ★★★ | TT/TL | E-4 | 11.25/2.0 | 43 | 182B/196A2 | 432 | 1548 | 8500/900 | 12500/1000 |
| SIZE | STAR RATING | TYPE | TRA CODE | STANDARD RIM |
TREAD DEPTH (mm) |
LOAD INDEX |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | |
| 50KM/H | 10KM/H | |||||||||
| 14.00R24 | ★★★ | TT/TL | E-4 | 10.00W | 40 | 170B | 375 | 1368 | 6050/800 | 10000/1000 |
| 14.00R25 | ★★★ | TT/TL | E-4 | 10.00/1.5 10.00/2.0 | 40 | 170B | 375 | 1368 | 6050/800 | 10000/1000 |
| 16.00R25 | ★★★ | TT | E3 | 11.25/2.0 | 27 | 182B/196A2 | 432 | 1493 | 8500/900 | 12500/1000 |
| ★★★ | TT/TL | E-4 | 11.25/2.0 | 43 | 182B/196A2 | 432 | 1548 | 8500/900 | 12500/1000 | |
| SIZE | STAR RATING | TYPE | TRA CODE | STANDARD RIM |
TREAD DEPTH (mm) |
LOAD INDEX |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | ||
| 50KM/H | 10KM/H | ||||||||||
| 14.00R24 | ★★★ | TT | E-3 | 10.00W | 30 | 170B/188A2 | 375 | 1368 | 6050/800 | 10000/1000 | |
| 14.00R25 | ★★★ | TT | E-3 | 10.00/2.0 | 30(E919) | 28(E929) | 170B/188A2 | 375 | 1368 | 6050/800 | 10000/1000 |
Product Feature And Application
Wide base dump truck mud tires with Extra deep tread and big pattern blocks,high speed durability and heat resistance.Mining truck tires on rough condition.Small dumping truck application.
Product Details
Special design for Grader.Cutting resist compound applied,longer tire life.Unique tire pattern design.Outstanding self-clean capacity.Balance profile design applying good working stability.Radial structure providing the Anti-shocking and Anti-skidding.
Product Qualification
Pre-treatment workshop
Molding workshop
Vulcanization workshop
Deliver,Shipping And Serving
QUALITY TRACKING SERVICE SUPPORT
FAQ
A. what is the MOQ?- One 20 feet container, and can be mixed.
B. What warranty for the tyres?- Within 2 years after the date of B/L.
